CNet CN100TX Network Adapter

To simplify installation, the CN100TX PowerNIC requires no user configuration. The jumperless card's PCI-bus BIOS provides instant configuration upon power-up. LEDs on the adapter cards provide complete link and activity status information to simplify troubleshooting. The CN100TX is fully compatible with IEEE 802.3 Ethernet standards as well as the 10BaseT and the 100BaseTX standard.
Priced at only $259, the powerful CN100TX provides organizations with the flexibility they need to meet their growing speed and performance requirements. Since each mode of the PCI-bus adapter is full-duplex, the new PowerNIC provides a potential throughput of 200Mbps and is ideal for use with multimedia and graphics workstations as well as Pentium- or RISC-based network servers.

Driver available here

http://74.125.77.132/translate_c?hl=en&sl=ru&u=http://softsearch.ru/programs/18-892-cn100tx-b-pci-bus-fast-ethernet-adapter-download.shtml&prev=/search%3Fq%3DCNET%2BFast%2BEthernet%2BAdapter%2BCN100TX%26hl%3Den%26sa%3DN%26start%3D40&usg=ALkJrhj_ZvVLO4qZXTUT8kXc9_-ebDJfVQ

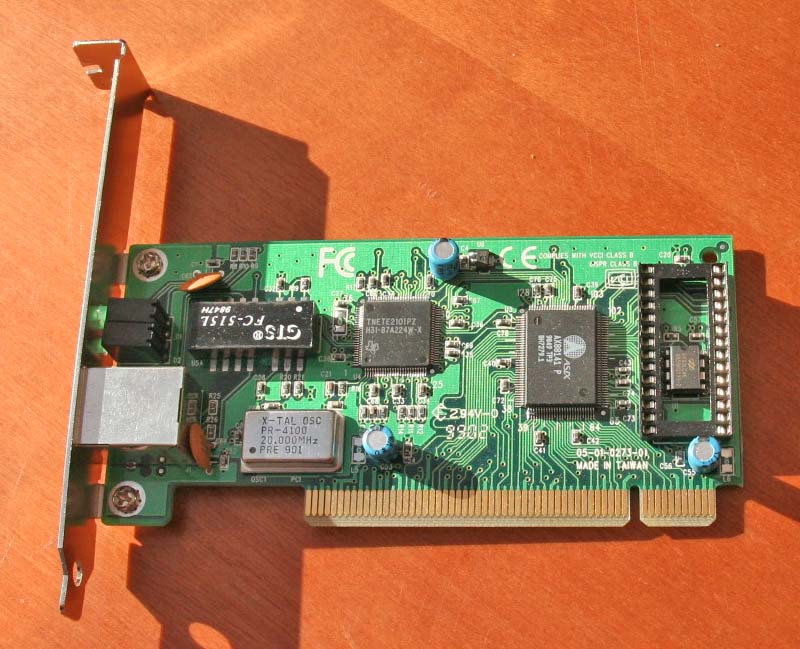

Information printed on the chips is as follows from left to right
TNETE2101PZ
H31-87A224W-X

ASIX
AX88141 P
9849 TP3
BH7279.1

P/N 18-1C-P110
S/N YJ1902000141

The card came in the box but has no manual or disks. It does not, however, resemble the picture on the box?
